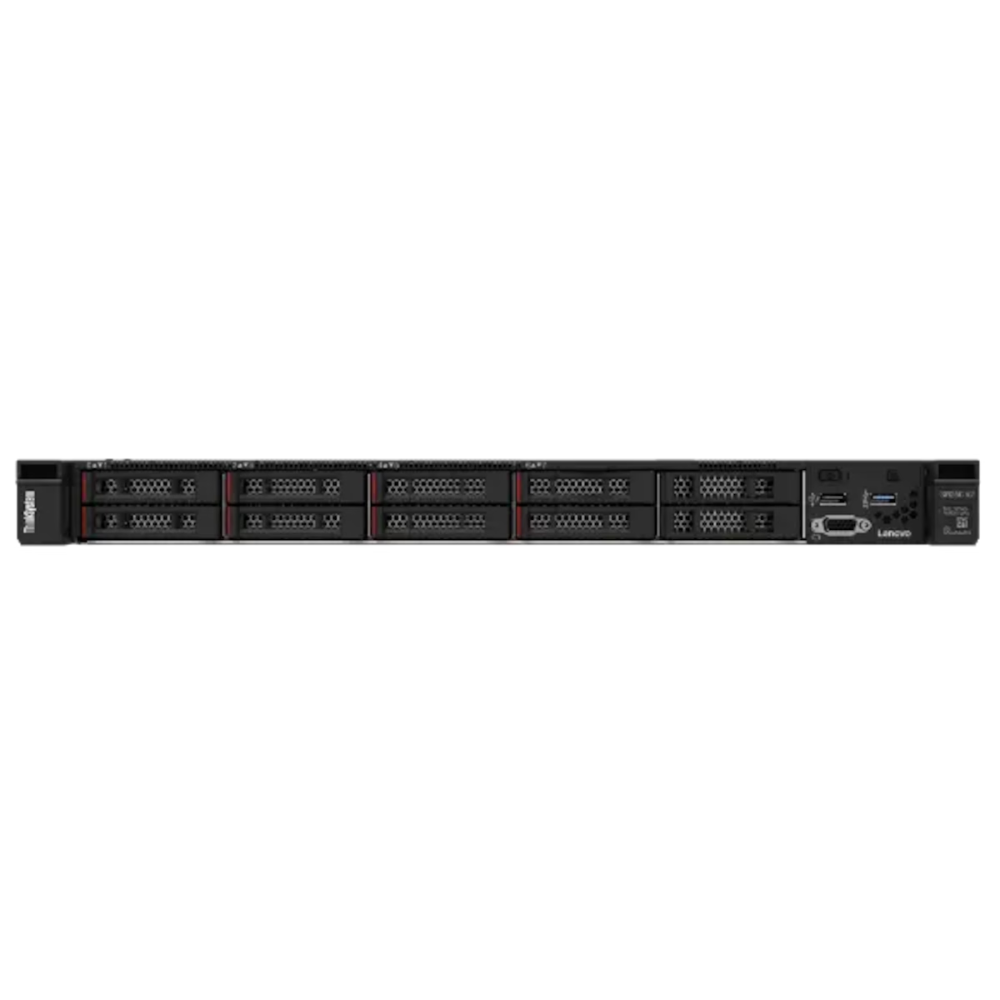

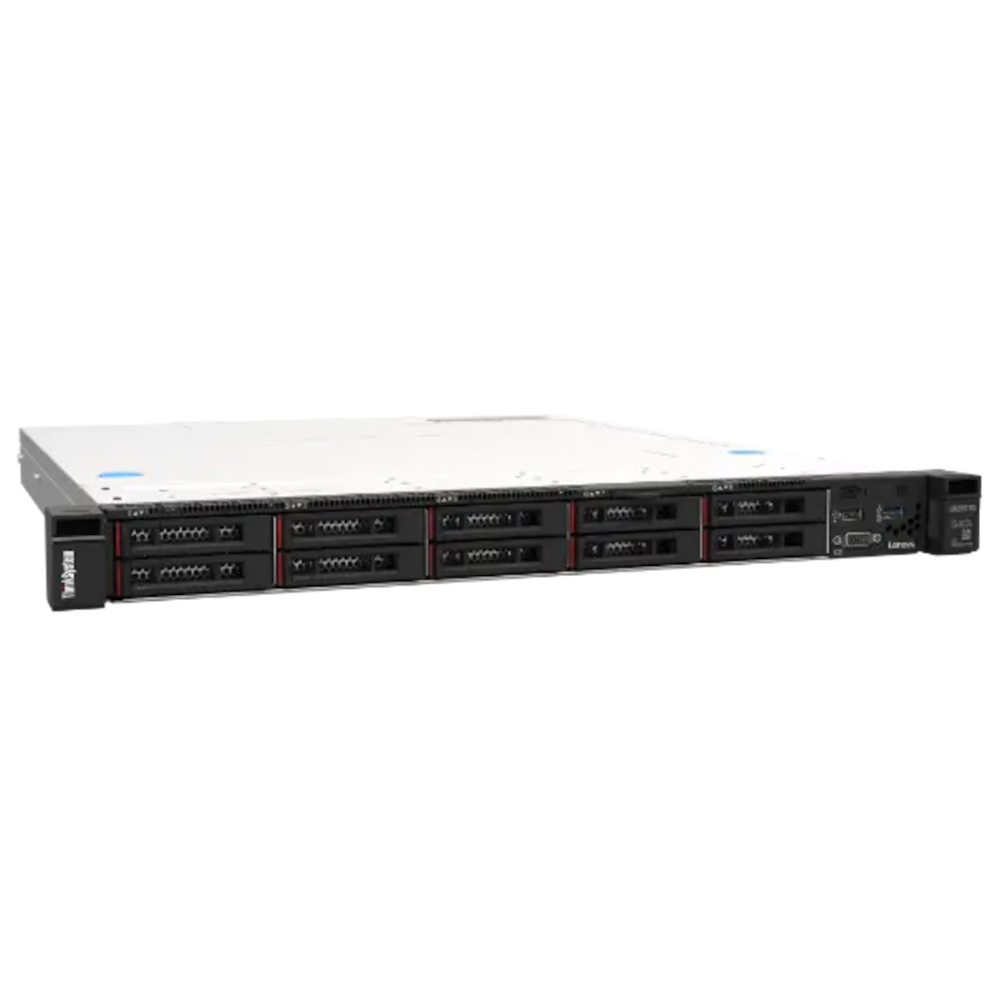

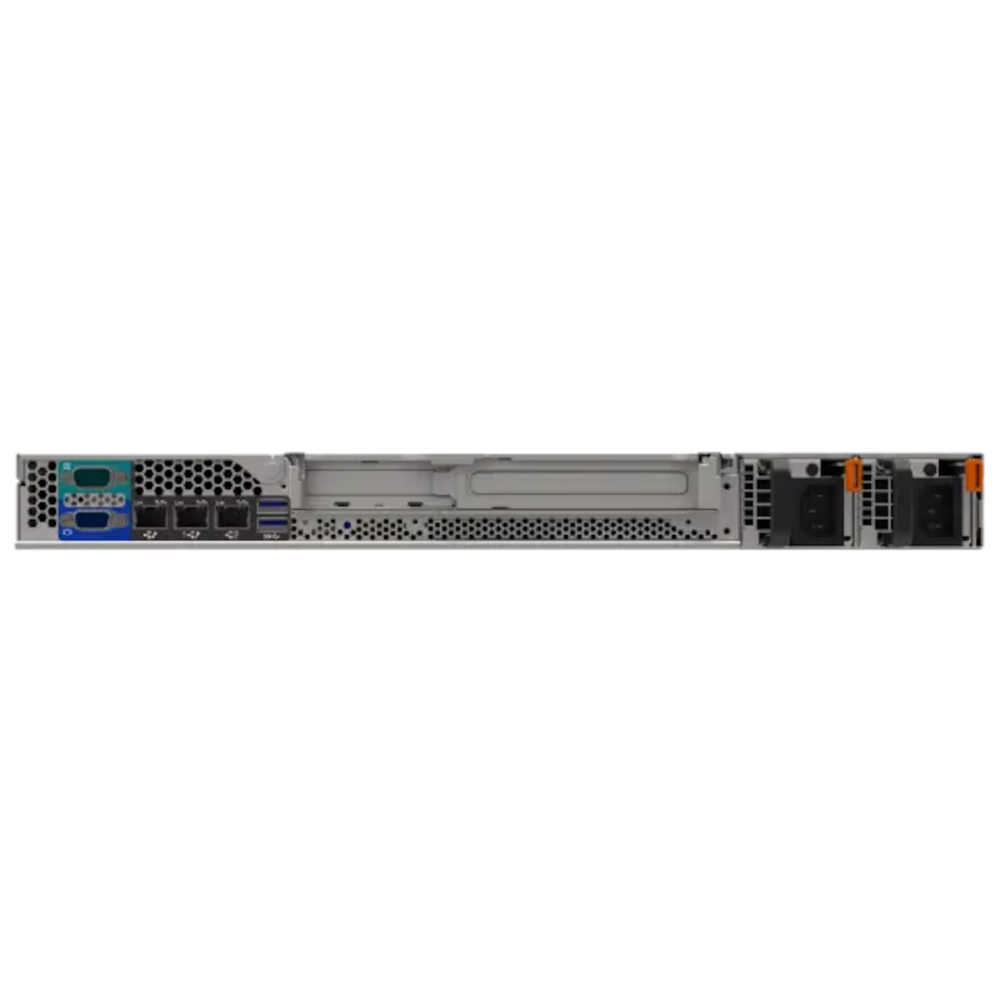

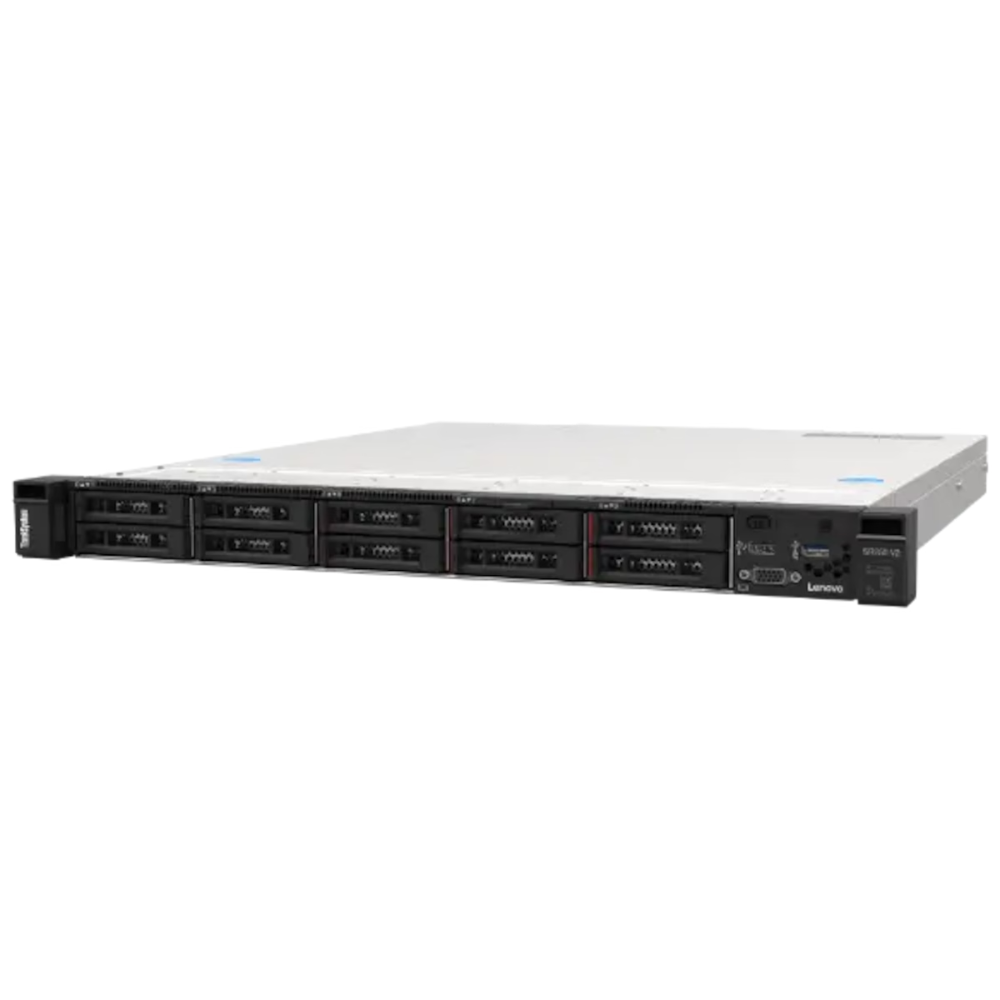

Lenovo ThinkSystem SR250 V2 Rack Server (7D7QA031EA) – Intel® Xeon® E-2378 8-Core 2.6GHz, 32GB DDR4-3200 ECC UDIMM, 8×2.5" Hot-Swap Bays, RAID 5350-8i, 450W Hot-Swap PSU, XClarity Enterprise, Rails Included – 1U Server
تعذر تحميل مدى توفر الطلب
Next Day Delivery
Buyers Guide
-
Demystifying Intel Processors: i3 vs. i5 vs. i7...
-
Choosing the Right Operating System: DOS vs. Wi...
-
13th Gen vs. 12th, 11th, 10th: Choosing the Rig...
Reliable Performance for Business Applications
Flexible Storage & Advanced Server Management
|
Specification |
Details |
|---|---|
|
Brand |
Lenovo |
|
Product Family |
ThinkSystem |
|
Model |
ThinkSystem SR250 V2 |
|
Part Number |
7D7QA031EA |
|
Product Type |
Rack Server |
|
Form Factor |
1U Rackmount |
|
Processor |
Intel® Xeon® E-2378 |
|
Processor Cores |
8 Cores |
|
Processor Threads |
16 Threads |
|
Base Frequency |
2.6GHz |
|
Maximum Turbo Frequency |
Up to 4.8GHz |
|
Processor Cache |
16MB Intel Smart Cache |
|
Processor TDP |
65W |
|
Installed Processors |
1 |
|
Processor Sockets |
1 |
|
Chipset |
Intel C256 |
|
Installed Memory |
32GB |
|
Memory Configuration |
1×32GB |
|
Memory Type |
DDR4 ECC UDIMM |
|
Memory Speed |
3200 MT/s |
|
Memory Slots |
4 DIMM Slots |
|
Maximum Memory |
128GB |
|
Installed Storage |
No HDD or SSD included |
|
Drive Bays |
8×2.5" SFF Hot-Swap Bays |
|
Drive Interface |
SAS/SATA |
|
RAID Controller |
Lenovo ThinkSystem RAID 5350-8i |
|
RAID Support |
Hardware RAID; supported levels depend on controller configuration |
|
Network Controller |
Broadcom BCM5720 |
|
Network Ports |
2×1GbE RJ-45 |
|
Dedicated Management Port |
1×RJ-45 |
|
Server Management |
Lenovo XClarity Controller Enterprise |
|
Integrated Video |
Management graphics controller |
|
Front USB Ports |
1×USB 3.2 Gen 1, 1×USB 2.0 |
|
Rear USB Ports |
2×USB 3.2 Gen 2 |
|
Rear Video |
1×VGA |
|
Serial Port |
1 |
|
Expansion |
PCIe Gen4 expansion support |
|
Power Supply |
1×450W Hot-Swap PSU |
|
PSU Redundancy |
Supports a second compatible PSU; not included |
|
Rack Rails |
Included |
|
Operating System |
Not included |
Specifications
Specifications
|
Specification |
Details |
|---|---|
|
Brand |
Lenovo |
|
Product Family |
ThinkSystem |
|
Model |
ThinkSystem SR250 V2 |
|
Part Number |
7D7QA031EA |
|
Product Type |
Rack Server |
|
Form Factor |
1U Rackmount |
|
Processor |
Intel® Xeon® E-2378 |
|
Processor Cores |
8 Cores |
|
Processor Threads |
16 Threads |
|
Base Frequency |
2.6GHz |
|
Maximum Turbo Frequency |
Up to 4.8GHz |
|
Processor Cache |
16MB Intel Smart Cache |
|
Processor TDP |
65W |
|
Installed Processors |
1 |
|
Processor Sockets |
1 |
|
Chipset |
Intel C256 |
|
Installed Memory |
32GB |
|
Memory Configuration |
1×32GB |
|
Memory Type |
DDR4 ECC UDIMM |
|
Memory Speed |
3200 MT/s |
|
Memory Slots |
4 DIMM Slots |
|
Maximum Memory |
128GB |
|
Installed Storage |
No HDD or SSD included |
|
Drive Bays |
8×2.5" SFF Hot-Swap Bays |
|
Drive Interface |
SAS/SATA |
|
RAID Controller |
Lenovo ThinkSystem RAID 5350-8i |
|
RAID Support |
Hardware RAID; supported levels depend on controller configuration |
|
Network Controller |
Broadcom BCM5720 |
|
Network Ports |
2×1GbE RJ-45 |
|
Dedicated Management Port |
1×RJ-45 |
|
Server Management |
Lenovo XClarity Controller Enterprise |
|
Integrated Video |
Management graphics controller |
|
Front USB Ports |
1×USB 3.2 Gen 1, 1×USB 2.0 |
|
Rear USB Ports |
2×USB 3.2 Gen 2 |
|
Rear Video |
1×VGA |
|
Serial Port |
1 |
|
Expansion |
PCIe Gen4 expansion support |
|
Power Supply |
1×450W Hot-Swap PSU |
|
PSU Redundancy |
Supports a second compatible PSU; not included |
|
Rack Rails |
Included |
|
Operating System |
Not included |
